MB - 59S doors

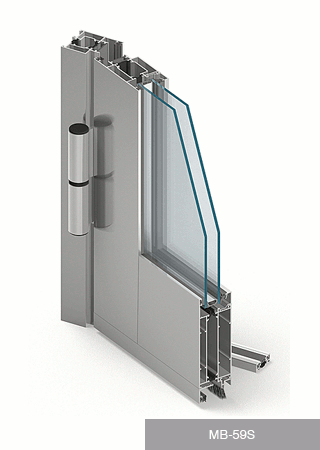

The MB-59S system is intended for realisations requiring thermal and acoustic insulation of the exterior building elements, such as: various types of windows, doors, vestibules, display windows, etc. The structural depth of the window sections is equal to 50 mm for frames and 59 mm for casements. The external surfaces of these sections lie in one surface. The structural depth of the door sections both for frames and the leafs is equal to 50 mm. This enables achieving the effect of facing the leaves with frames both from the external and the internal side.
Almost all window and door sections have a three-chamber structure, where the central chamber is the insulation chamber between thermal breaks. Thanks to such a solution it was possible to obtain slender, economical and rigid profiles. The system of connections with thermal break allows application of double-colour profiles - different on the internal and the external side of the façade. In MB-59S system, there are profiled "omega"-shaped thermal breaks, made from polyamide reinforced with fibreglass. Such a shape of thermal breaks ensures very good thermal insulation and the proper drainage from internal chambers of the profile.
The MB-59S system profiles meet the thermal requirements for material group 2.1 according to DIN 4108. Thickness of the in-fill material used therein may range from 4 mm to 40 mm in window casements, while in doors, displays and in fixed window: from 4 mm to 31 mm.
One of the basic advantages of MB-59S system is the freedom of selecting the hardware and methods of its mounting. Thanks to the applied special grooves, the door profile structure allows mounting various types of hinges, the co-called mortise hinges as well as fasteners and bolts. The door can be also outfitted with traditional surface hinges. The window sections have profiled grooves of dimensions allowing application of enveloped hardware and connecting elements in accordance with the European Union standards, intended both for aluminium and plastic windows. These solutions allow mounting the hardware produced by a majority of reputable companies.
The significant quality of the presented structure is the possibility to bend profiles and to achieve various types of arches and arch structures.
Color
BASIC COLOURS Alu:
please notice, that the colours may shift from the real ones.Wood-like colours DECOR:
please notice, that the colours may shift from the real ones.- ADEC B108 BEECH
- ADEC C106 Dark Gean
- ADEC C106 Gean
- ADEC C247 Gean
- ADEC D101 Golden Oak
- ADEC D246 Rustic oak
- ADEC D349 Golden Oak
- ADEC D502 Swamp Oak
- ADEC D825 Vintage oak
- ADEC E137 Concrete
- ADEC J107 Fir
- ADEC K101 Chestnut
- ADEC M102 Ebony
- ADEC M103 Mahogany
- ADEC M204 Mahogany Sapeli
- ADEC M332 Palisander
- ADEC 0102 Walnut
- ADEC 0205 Walnut Vein
- ADEC 0650 Walnut
- ADEC T151 Turner Oak
- ADEC W109 Cherry
- ADEC W205 Wenge
- ADEC W645 Winchester
